Sandvik Coromant

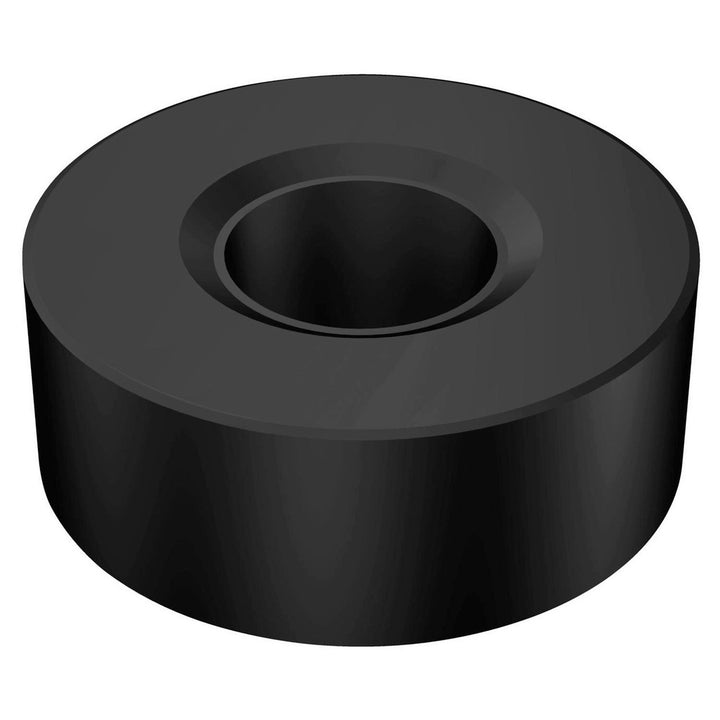

RNGA120400T01020650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5741157
MFR# 5741157ISO/ANSI# RNGA120400T01020650Series T-Max P
$16.59List $21.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5741157 is a RNGA120400T01020650 ceramic indexable insert, grade 650, TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Cutting edge styleNegative Land
Hole diameter0.2032
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCeramic
Insert shapeRound
Insert size code43
Insert styleRNGA
Insert thickness in3/16
Iso codeRNGA120400T01020650
Manufacturers catalog number5741157
Manufacturer grade650
Number of cutting edges8
Primary workpiece materialCast Iron
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
