Sandvik Coromant
Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5741489
MFR# 5741489Cat# R123F2-0250-0501-CF 2135Series CoroCut 1-2
$35.91List $46.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

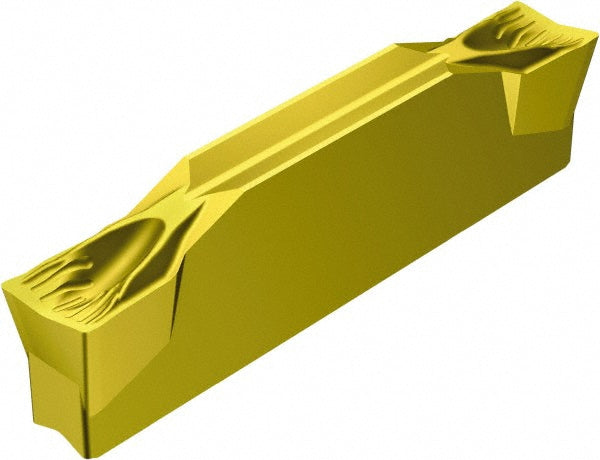

The Sandvik Coromant 5741489 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCF
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0059
Cutting width0.0984
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeF
Insert size codeF
Insert styleR123x2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR123F2-0250-0501-CF 2135
Manufacturer grade2135
Maximum depth of cut0.7244
Overall length0.7815
Overall width0.0984
Relief angle7.00
