Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741499
MFR# 5741499Cat# R123F2-0250-1501-CS 1125Series CoroCut 1-2
$49.35List $63.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741499 is a solid carbide indexable insert, grade 1125, TiAlN coated.

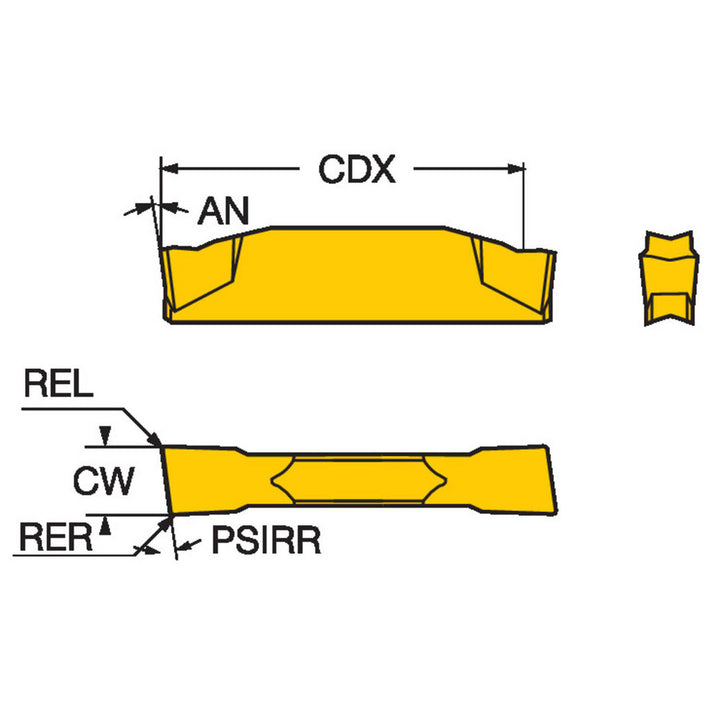

Specifications
ChipbreakerCS
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting width0.0984
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeF
Insert size codeF
Insert styleR123x2
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberR123F2-0250-1501-CS 1125
Manufacturer grade1125
Maximum depth of cut0.7638
Overall length0.7913
Overall width0.0984
Relief angle7.00
