Sandvik Coromant
Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741509
MFR# 5741509Series T-Max Q-Cut
$20.42List $26.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description

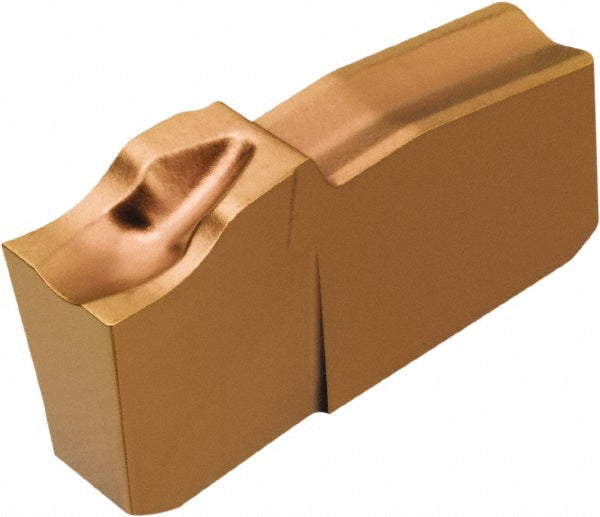

The Sandvik Coromant 5741509 is a carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chipbreaker5F
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting tool applicationParting
Cutting width0.0787
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size20
Insert size code20
Insert styleR151.2
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog number5741509
Manufacturer grade1125
Relief angle7.00
