Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741517
MFR# 5741517Cat# R151.2-200 05-5F 1125Series T-Max Q-Cut
$20.42List $26.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

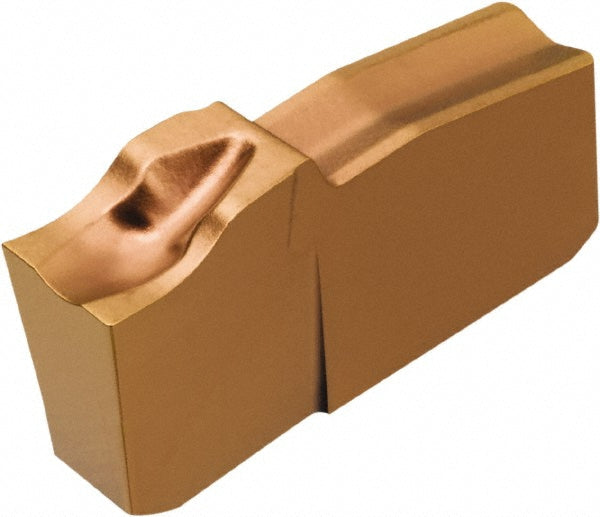

The Sandvik Coromant 5741517 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chipbreaker5F
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size20
Insert size code20
Insert styleR151.2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR151.2-200 05-5F 1125
Manufacturer grade1125
Overall width0.0787
Relief angle7.00
