Sandvik Coromant
Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5741570
MFR# 5741570Cat# R151.2-400 05-4E 2135Series T-Max Q-Cut
$21.09List $27.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

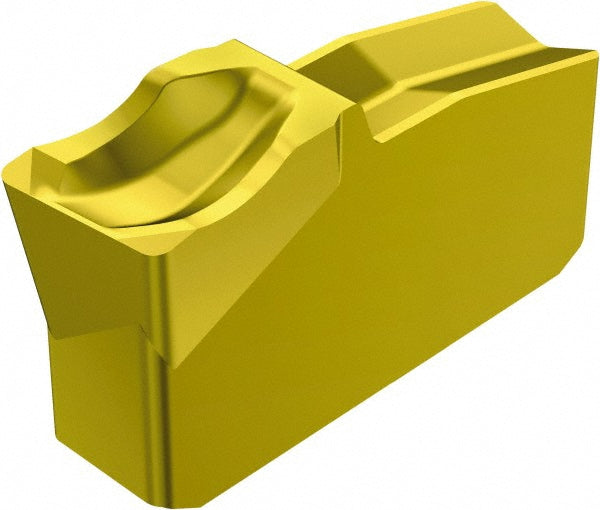

The Sandvik Coromant 5741570 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker4E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size40
Insert size code40
Insert styleR151.2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR151.2-400 05-4E 2135
Manufacturer grade2135
Overall width0.1575
Relief angle7.00
