Sandvik Coromant

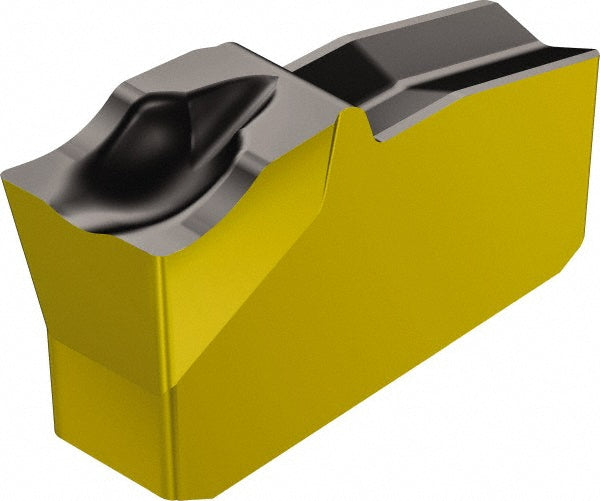

Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5741581
MFR# 5741581Cat# R151.2-300 05-5E 4225Series T-Max Q-Cut
$21.91List $28.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5741581 is a solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size30
Insert size code30
Insert styleR151.2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR151.2-300 05-5E 4225
Manufacturer grade4225
Overall length0.2197
Overall width0.1181
Relief angle7.00
