Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741642
MFR# 5741642Cat# R151.2-300 05-4E 1125Series T-Max Q-Cut
$21.47List $27.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

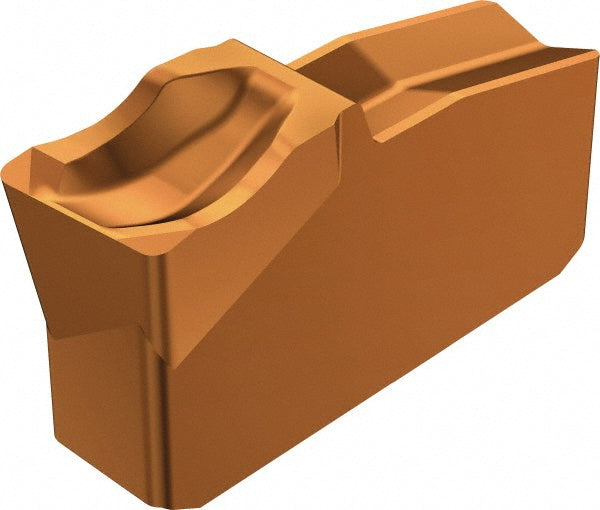

The Sandvik Coromant 5741642 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chipbreaker4E
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size30
Insert size code30
Insert styleR151.2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR151.2-300 05-4E 1125
Manufacturer grade1125
Overall length0.2197
Overall width0.1181
Relief angle7.00
