Sandvik Coromant

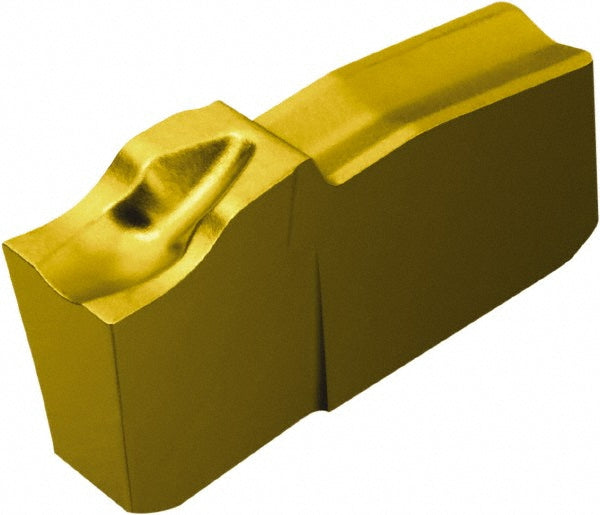

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5741745
MFR# 5741745Cat# R151.2-250 05-5F 2135Series T-Max Q-Cut
$20.76List $26.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5741745 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5F
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0039
Cutting width0.0984
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size25
Insert size code25
Insert styleR151.2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR151.2-250 05-5F 2135
Manufacturer grade2135
Overall width0.0984
Relief angle7.00
