Sandvik Coromant

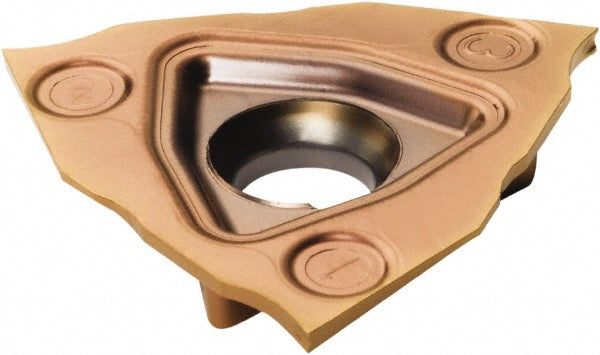

Solid Carbide Insert, Grade 1125 - Sandvik Coromant 5741787
MFR# 5741787Cat# R123T3-0200-1000-CS 1125Series CoroCut 3
$50.61List $64.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
Description
The Sandvik Coromant 5741787 is a solid carbide indexable insert, grade 1125.
Specifications
ChipbreakerCS
Coating processPVD
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeT
Insert size codeT
Insert styleR123T3
Lead angle10
Lead angle directionRight Hand
Manufacturers catalog numberR123T3-0200-1000-CS 1125
Manufacturer grade1125
Maximum depth of cut0.2480
Overall length0.4211
Overall width0.0787
Relief angle7.00
