Sandvik Coromant

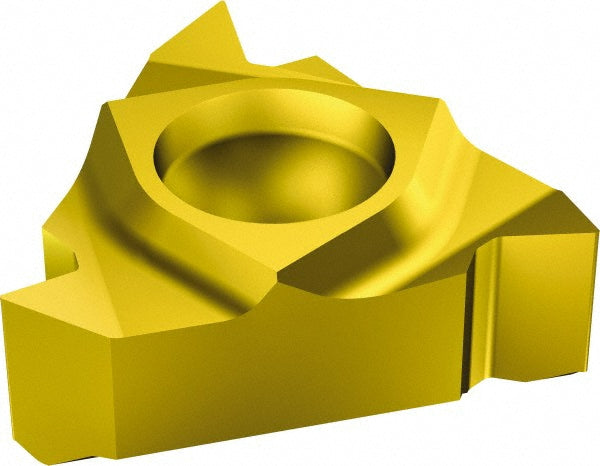

1/4" IC Solid Carbide Insert, Grade 4125, TiAlN/TiN - Sandvik Coromant 5742041
MFR# 5742041Cat# R166.0L-11VM01-001 4125Series T-Max U-Lock
$36.93List $47.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4125
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5742041 is a solid carbide indexable insert, grade 4125, TiAlN/TiN coated.
Specifications
ChipbreakerA
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0024
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style266
Manufacturers catalog numberR166.0L-11VM01-001 4125
Manufacturer grade4125
Number of teeth per side1
Pitch (mm)1.00-2.00
Thickness in1/8
Threads per inch12-24
Thread standard60 Deg V
Thread typeInternal
