Sandvik Coromant

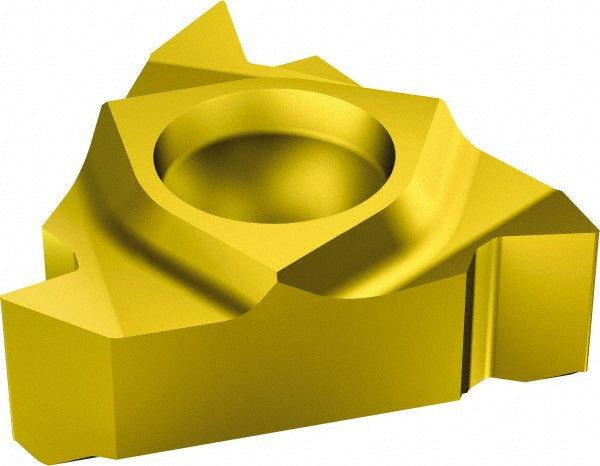

1/4" IC Solid Carbide Insert, Grade 1020, TiN - Sandvik Coromant 5742075
MFR# 5742075Cat# R166.0L-11VM01-001 1020Series T-Max U-Lock
$35.20List $45.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade1020
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 5742075 is a solid carbide indexable insert, grade 1020, TiN coated.
Specifications
ChipbreakerA
Coating finishTiN
Coating processPVD
Corner radius0.0024
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style166
Manufacturers catalog numberR166.0L-11VM01-001 1020
Manufacturer grade1020
Number of teeth per side1
Pitch (mm)1.00-2.00
Thickness in1/8
Threads per inch12-24
Thread standard60 Deg V
Thread typeInternal
