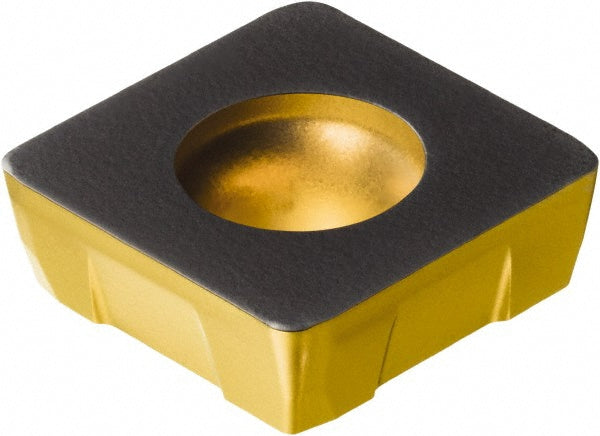

R210-14 05 12M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5742556

Sandvik Coromant

R210-14 05 12M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5742556

MFR# 5742556ISO/ANSI# R210-14 05 12M-PM 4220Cat# R210-14 05 12M-PM 4220Series R210

$24.76List $31.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5742556 is a R210-14 05 12M-PM 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR210-14 05 12M-PM 4220
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5709
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140512
Insert styleR210
Iso codeR210-14 05 12M-PM 4220
Length0.5709
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 12M-PM 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5709
