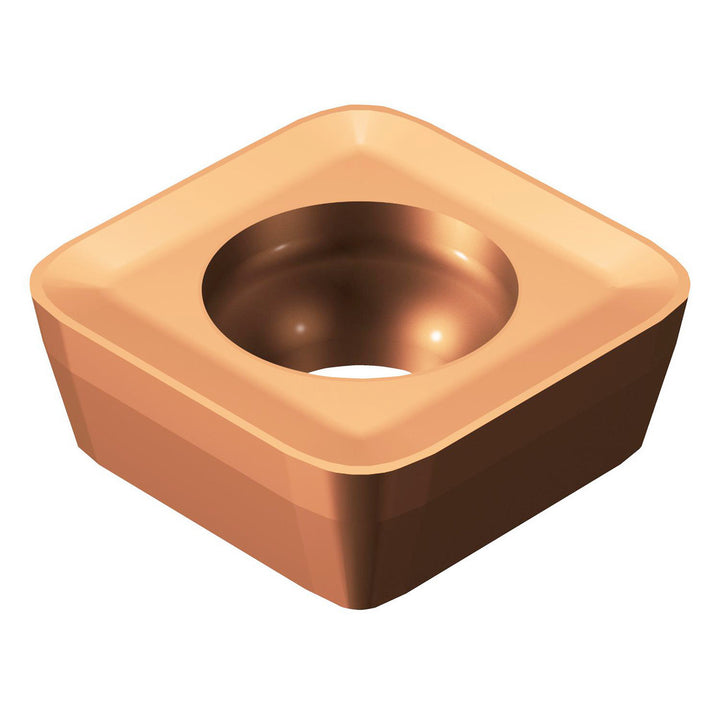

R210-14 05 14E-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5742575

Sandvik Coromant

R210-14 05 14E-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5742575

MFR# 5742575ISO/ANSI# R210-14 05 14E-KM 1020Cat# R210-14 05 14E-KM 1020Series R210

$34.23List $43.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5742575 is a R210-14 05 14E-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR210-14 05 14E-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5748
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140514
Insert styleR210
Iso codeR210-14 05 14E-KM 1020
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 14E-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.5748
