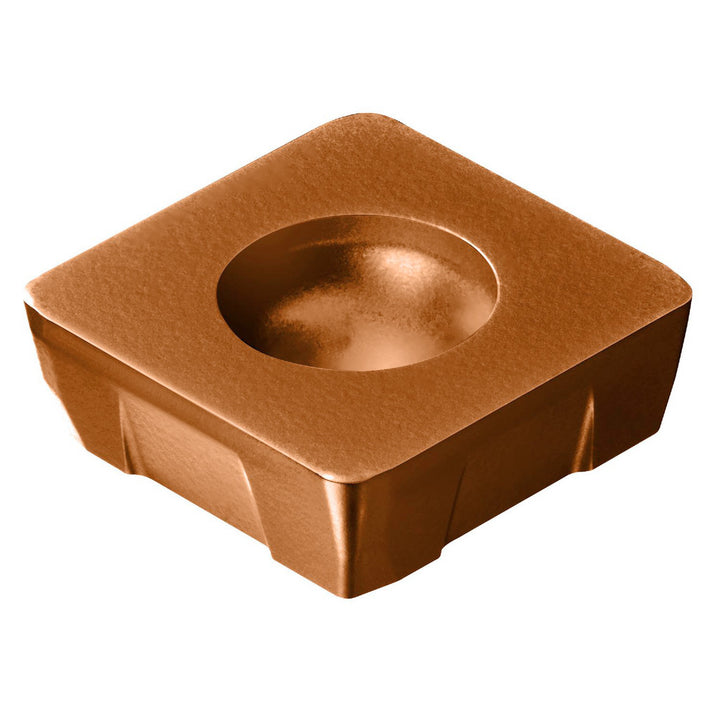

R210-09 04 12M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5742581

Sandvik Coromant

R210-09 04 12M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5742581

MFR# 5742581ISO/ANSI# R210-09 04 12M-KM 1020Cat# R210-09 04 12M-KM 1020Series R210

$17.15List $22.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5742581 is a R210-09 04 12M-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR210-09 04 12M-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3701
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleR210
Iso codeR210-09 04 12M-KM 1020
Length0.3701
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 12M-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.3701
