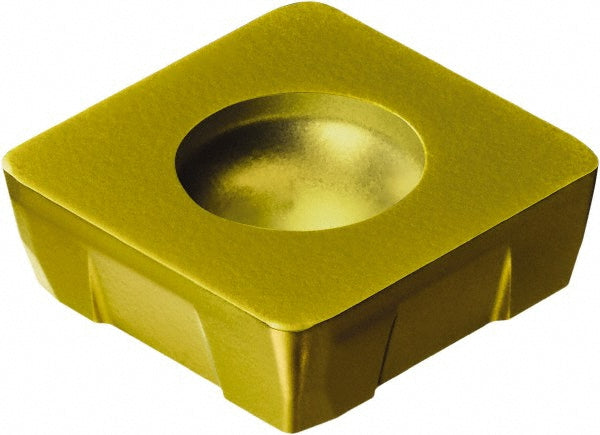

R210-09 04 12M-MM 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5742587
MFR# 5742587ISO/ANSI# R210-09 04 12M-MM 2030Cat# R210-09 04 12M-MM 2030Series R210
$20.54List $26.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade2030
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5742587 is a R210-09 04 12M-MM 2030 solid carbide indexable insert, grade 2030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR210-09 04 12M-MM 2030
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3701
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleR210
Iso codeR210-09 04 12M-MM 2030
Length0.3701
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 12M-MM 2030
Manufacturer grade2030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M25; S20
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.3701
