Sandvik Coromant

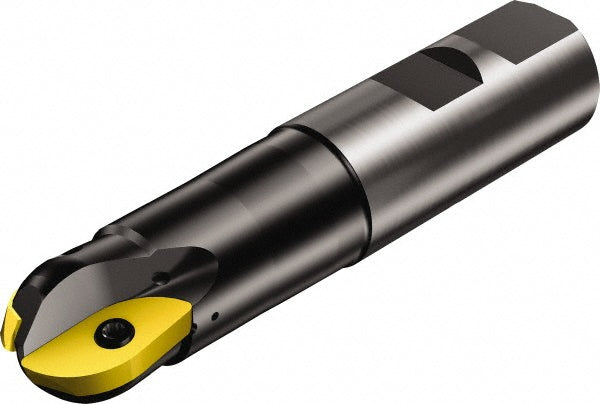

Indexable End Mills - Sandvik Coromant 5743666
MFR# 5743666Series CoroMill 216
$653.67List $694.44
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sandvik Coromant 5743666 indexable end mills. Series CoroMill 216.
Specifications
Compatible insert styleR216-20 T3
Coolant throughYes
Cutting diameter0.7874
Head length1.2992
Insert holding methodScrew
Maximum depth of cut0.7047
Maximum rpm24000
Neck diameter0.9843
Number of ball nose inserts2
Number of flutes2
Number of side inserts used on toolholder2
Overall length4.2126
Projection2.0079
Shank diameter0.9843
Shank typeWeldon Flat
Toolholder styleR216.. B
Tool materialSteel
Weldon flatYes
