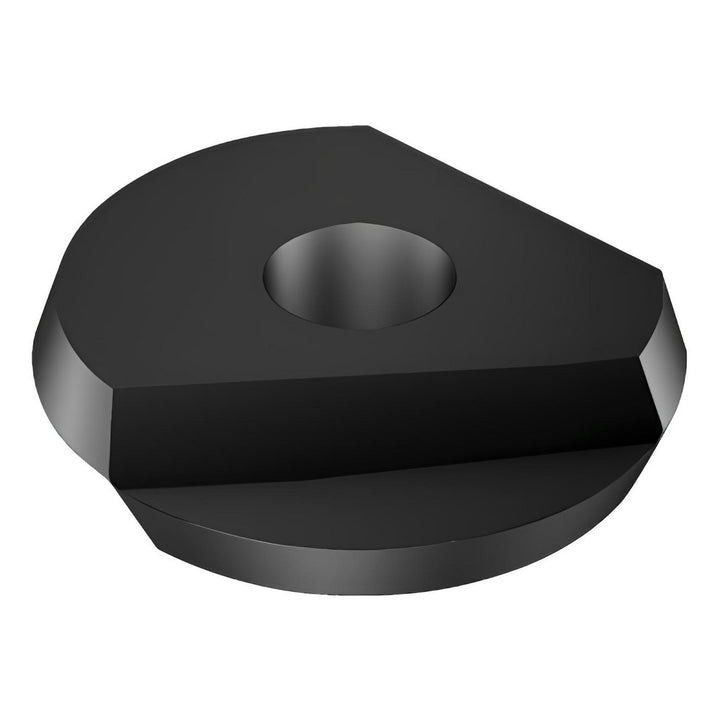

R216F-16 40 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5743780

Sandvik Coromant

R216F-16 40 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5743780

MFR# 5743780ISO/ANSI# R216F-16 40 E-L 1010Cat# R216F-16 40 E-L 1010Series R216F

$108.63List $139.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5743780 is a R216F-16 40 E-L 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeR216F-16 40 E-L 1010
Chip breakerL
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.3150
Cutter series compatibilityR216F
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree180
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size16
Insert size code1640
Insert styleR216F
Iso codeR216F-16 40 E-L 1010
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberR216F-16 40 E-L 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.6299
