Sandvik Coromant

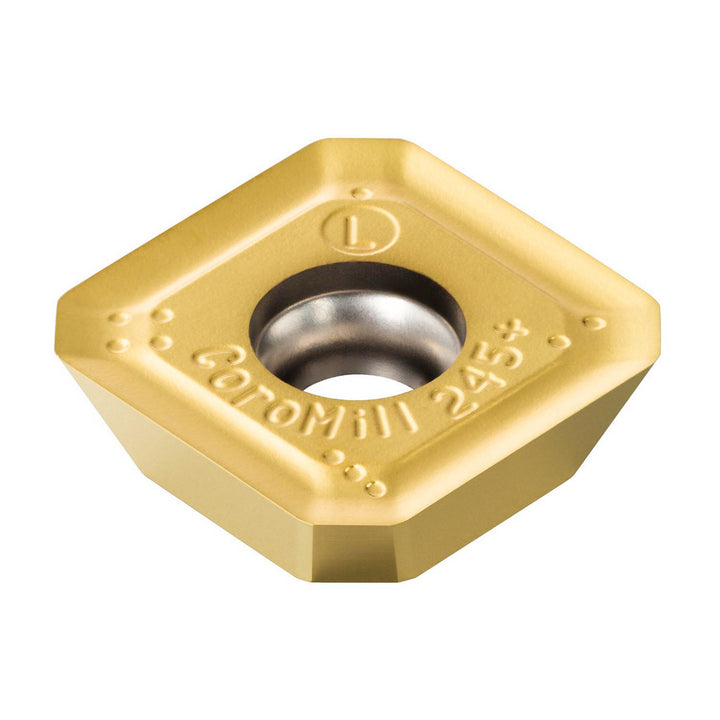

R245-12 T3 E-ML 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5743880
MFR# 5743880ISO/ANSI# R245-12 T3 E-ML 2030Cat# R245-12 T3 E-ML 2030Series R245
$29.55List $37.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade2030
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5743880 is a R245-12 T3 E-ML 2030 solid carbide indexable insert, grade 2030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR245-12 T3 E-ML 2030
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 E-ML 2030
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 E-ML 2030
Manufacturer grade2030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M25; S20
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
