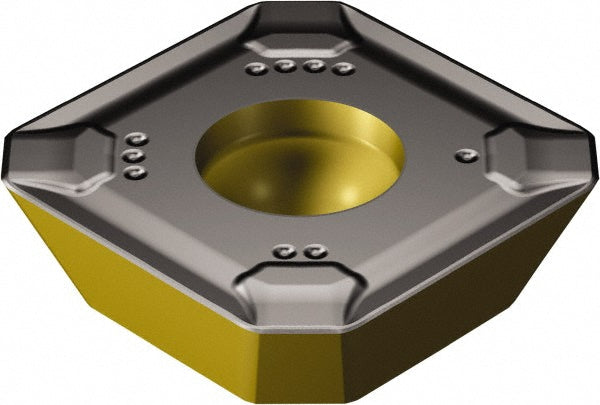

R245-18 T6 M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5743968

Sandvik Coromant

R245-18 T6 M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5743968

MFR# 5743968ISO/ANSI# R245-18 T6 M-PM 4220Cat# R245-18 T6 M-PM 4220Series R245

$29.87List $38.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5743968 is a R245-18 T6 M-PM 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR245-18 T6 M-PM 4220
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.7087
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size18
Insert size code18T6
Insert styleR245
Iso codeR245-18 T6 M-PM 4220
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberR245-18 T6 M-PM 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.3839
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2402
Thickness range0.2350 to 0.2500
Width0.7087
