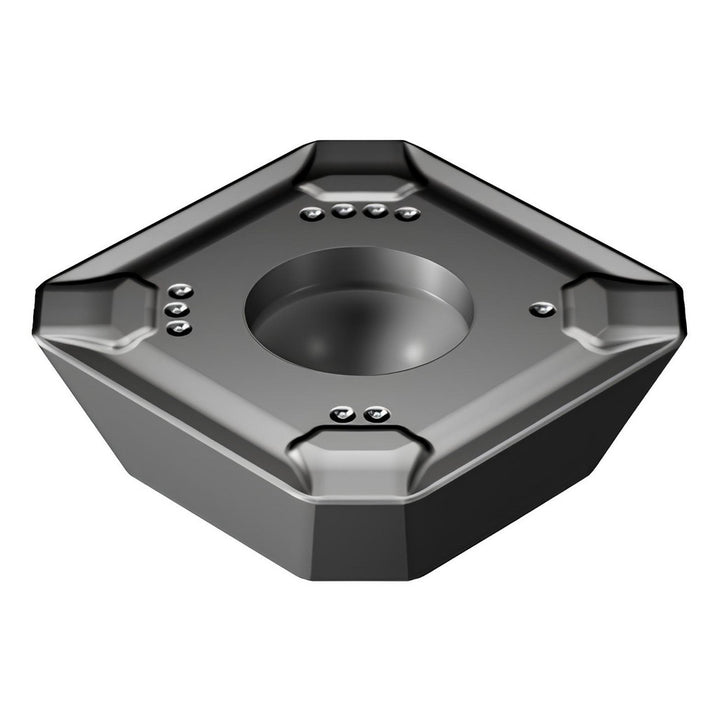

R245-12 T3 M-KL 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5743976

Sandvik Coromant

R245-12 T3 M-KL 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5743976

MFR# 5743976ISO/ANSI# R245-12 T3 M-KL 3040Cat# R245-12 T3 M-KL 3040Series R245

$22.18List $28.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5743976 is a R245-12 T3 M-KL 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR245-12 T3 M-KL 3040
Chip breakerKL
Coating finishTiCN
Coating processCVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-KL 3040
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-KL 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
