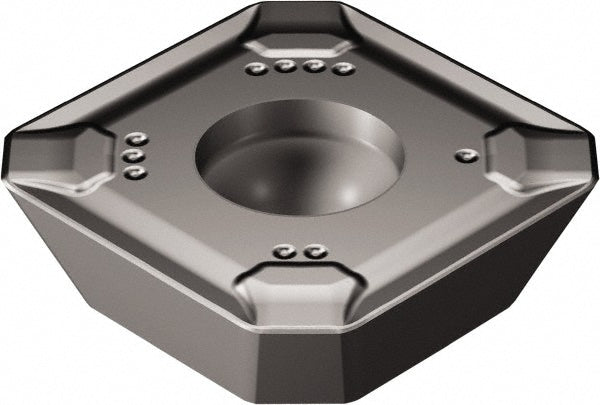

R245-12 T3 M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5743979

Sandvik Coromant

R245-12 T3 M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5743979

MFR# 5743979ISO/ANSI# R245-12 T3 M-PM 1010Cat# R245-12 T3 M-PM 1010Series R245

$21.32List $27.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5743979 is a R245-12 T3 M-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeR245-12 T3 M-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-PM 1010
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
