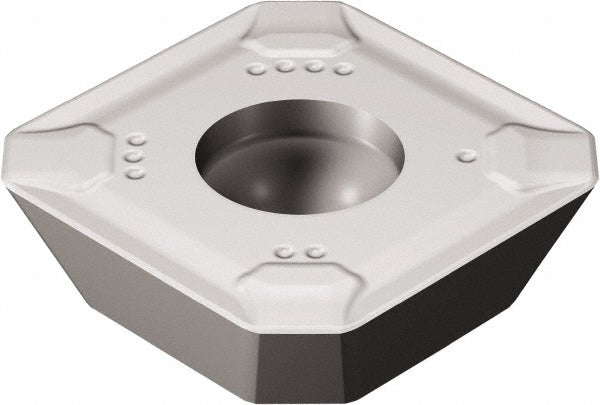

R245-12 T3 M-KM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5743980

Sandvik Coromant

R245-12 T3 M-KM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5743980

MFR# 5743980ISO/ANSI# R245-12 T3 M-KM H13ACat# R245-12 T3 M-KM H13ASeries R245

$18.19List $23.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5743980 is a R245-12 T3 M-KM H13A solid carbide indexable insert, grade H13A. Suited for cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeR245-12 T3 M-KM H13A
Chip breakerKM
Coating processUncoated
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-KM H13A
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-KM H13A
Manufacturer gradeH13A
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle6
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
