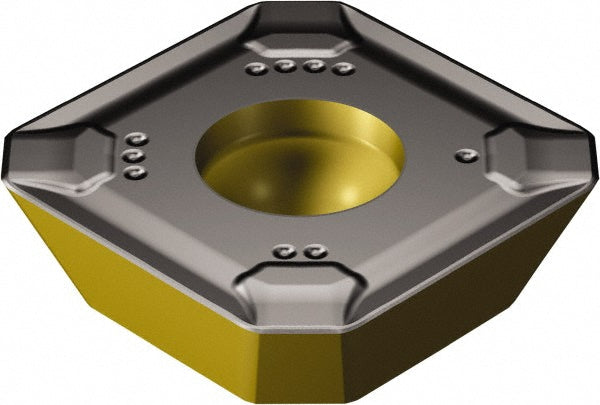

R245-12 T3 M-PH 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5744004

Sandvik Coromant

R245-12 T3 M-PH 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5744004

MFR# 5744004ISO/ANSI# R245-12 T3 M-PH 4220Cat# R245-12 T3 M-PH 4220Series R245

$21.32List $27.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5744004 is a R245-12 T3 M-PH 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR245-12 T3 M-PH 4220
Chip breakerPH
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-PH 4220
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-PH 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle6
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
