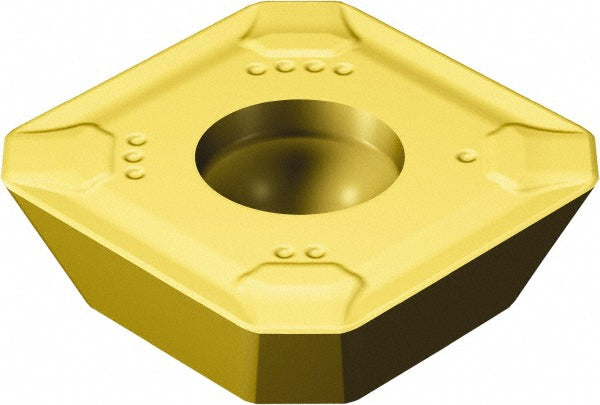

R245-18 T6 M-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5744007

Sandvik Coromant

R245-18 T6 M-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5744007

MFR# 5744007ISO/ANSI# R245-18 T6 M-MM 2040Cat# R245-18 T6 M-MM 2040Series R245

$30.49List $39.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5744007 is a R245-18 T6 M-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR245-18 T6 M-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.7087
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size18
Insert size code18T6
Insert styleR245
Iso codeR245-18 T6 M-MM 2040
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberR245-18 T6 M-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.3839
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2402
Thickness range0.2350 to 0.2500
Width0.7087
