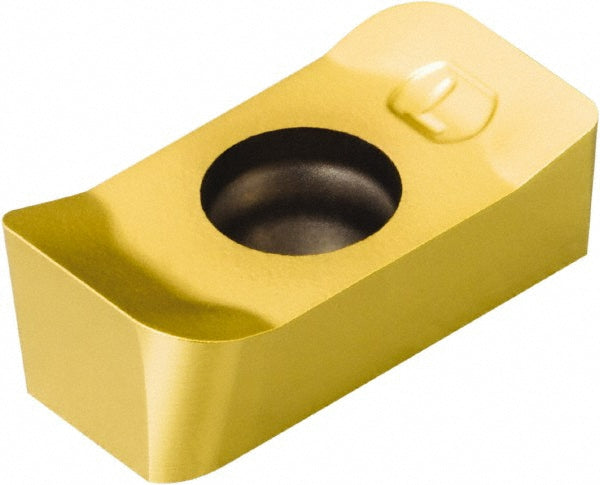

R331.1A-08 45 30H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5744615

Sandvik Coromant

R331.1A-08 45 30H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5744615

MFR# 5744615ISO/ANSI# R331.1A-08 45 30H-WL1025Cat# R331.1A-08 45 30H-WL1025Series R331.1A

$27.79List $35.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5744615 is a R331.1A-08 45 30H-WL1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR331.1A-08 45 30H-WL1025
Chip breakerWL
Coating finishTiCN
Coating processPVD
Corner radius0.1201
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084530
Insert styleR331.1A
Iso codeR331.1A-08 45 30H-WL1025
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberR331.1A-08 45 30H-WL1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
