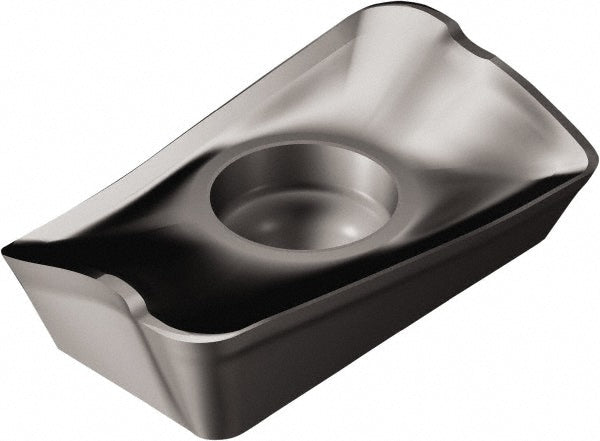

R390-11 T3 04M-KM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5745423

Sandvik Coromant

R390-11 T3 04M-KM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5745423

MFR# 5745423ISO/ANSI# R390-11 T3 04M-KM 3040Cat# R390-11 T3 04M-KM 3040Series R390

$23.93List $30.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5745423 is a R390-11 T3 04M-KM 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR390-11 T3 04M-KM 3040
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T304
Insert styleR390
Iso codeR390-11 T3 04M-KM 3040
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 04M-KM 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
