Sandvik Coromant

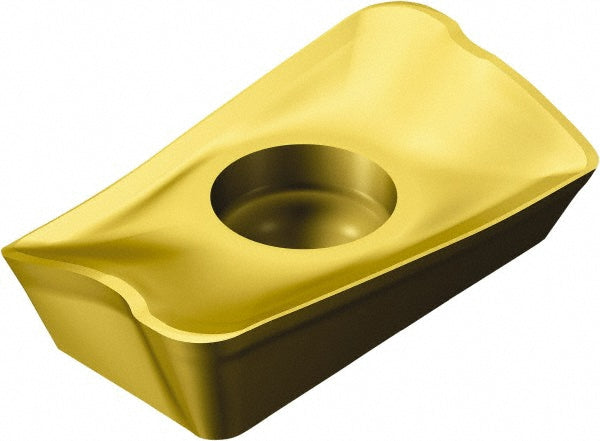

R390-17 04 08E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5745604
MFR# 5745604ISO/ANSI# R390-17 04 08E-ML 2040Cat# R390-17 04 08E-ML 2040Series R390
$36.84List $47.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5745604 is a R390-17 04 08E-ML 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-17 04 08E-ML 2040
Chip breakerML
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08E-ML 2040
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08E-ML 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
