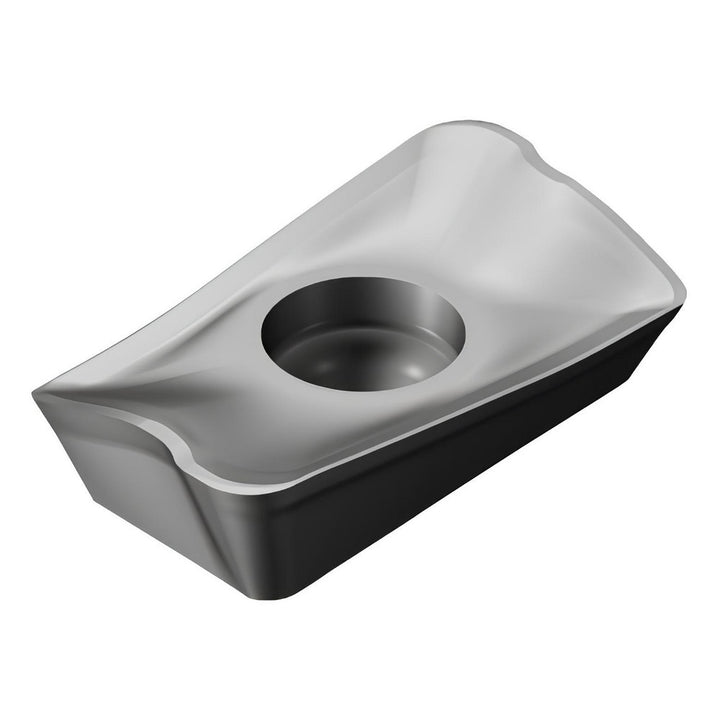

R390-17 04 08E-PL 530 Cermet Insert, Grade 530 - Sandvik Coromant 5745611

Sandvik Coromant

R390-17 04 08E-PL 530 Cermet Insert, Grade 530 - Sandvik Coromant 5745611

MFR# 5745611ISO/ANSI# R390-17 04 08E-PL 530Cat# R390-17 04 08E-PL 530Series R390

$29.22List $37.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade530
MaterialCermet

Description

The Sandvik Coromant 5745611 is a R390-17 04 08E-PL 530 cermet indexable insert, grade 530. Suited for steel, stainless steel, non-ferrous metal, hard material.

Specifications

Ansi codeR390-17 04 08E-PL 530
Chip breakerPL
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08E-PL 530
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08E-PL 530
Manufacturer grade530
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
RakePositive
Rake angle23
Relief angle19.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
