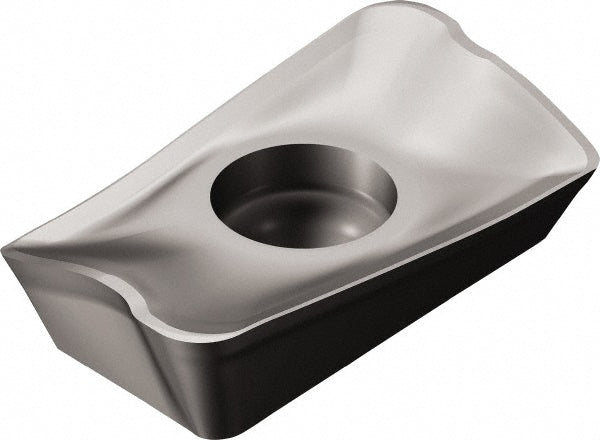

R390-11 T3 31E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5745614

Sandvik Coromant

R390-11 T3 31E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5745614

MFR# 5745614ISO/ANSI# R390-11 T3 31E-NL H13ACat# R390-11 T3 31E-NL H13ASeries R390

$21.81List $27.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5745614 is a R390-11 T3 31E-NL H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal.

Specifications

Ansi codeR390-11 T3 31E-NL H13A
Chip breakerNL
Coating processUncoated
Corner radius0.1220
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T331
Insert styleR390
Iso codeR390-11 T3 31E-NL H13A
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 31E-NL H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal
Material gradeK20; N15; S20
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle30
Relief angle21.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
