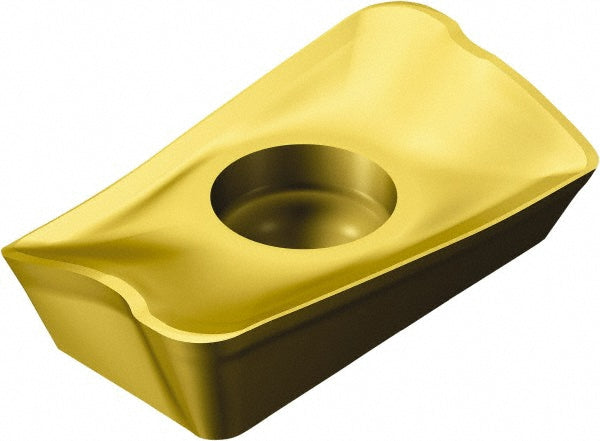

R390-11 T3 08E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5745640

Sandvik Coromant

R390-11 T3 08E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5745640

MFR# 5745640ISO/ANSI# R390-11 T3 08E-ML 2040Cat# R390-11 T3 08E-ML 2040Series R390

$29.66List $38.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5745640 is a R390-11 T3 08E-ML 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR390-11 T3 08E-ML 2040
Chip breakerML
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08E-ML 2040
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08E-ML 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
