Sandvik Coromant

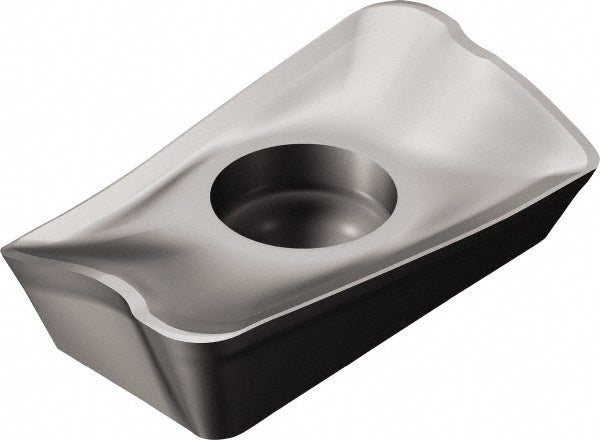

R390-11 T3 08M-KL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5745670
MFR# 5745670ISO/ANSI# R390-11 T3 08M-KL H13ACat# R390-11 T3 08M-KL H13ASeries R390
$19.88List $25.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5745670 is a R390-11 T3 08M-KL H13A solid carbide indexable insert, grade H13A. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeR390-11 T3 08M-KL H13A
Chip breakerKL
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08M-KL H13A
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08M-KL H13A
Manufacturer gradeH13A
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
