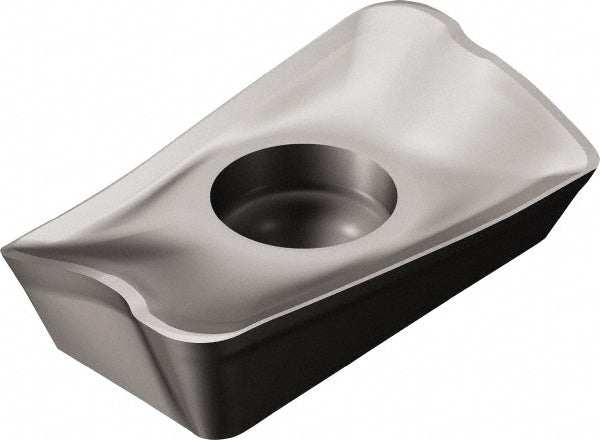

R390-17 04 31E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5745687

Sandvik Coromant

R390-17 04 31E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5745687

MFR# 5745687ISO/ANSI# R390-17 04 31E-NL H13ACat# R390-17 04 31E-NL H13ASeries R390

$29.22List $37.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5745687 is a R390-17 04 31E-NL H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal.

Specifications

Ansi codeR390-17 04 31E-NL H13A
Chip breakerNL
Coating processUncoated
Corner radius0.1220
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170431
Insert styleR390
Iso codeR390-17 04 31E-NL H13A
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 31E-NL H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal
Material gradeK20; N15; S20
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle28
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
