R390-17 04 16E-PM 1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5745833

Sandvik Coromant

R390-17 04 16E-PM 1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5745833

MFR# 5745833ISO/ANSI# R390-17 04 16E-PM 1025Cat# R390-17 04 16E-PM 1025Series R390

$42.52List $54.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5745833 is a R390-17 04 16E-PM 1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

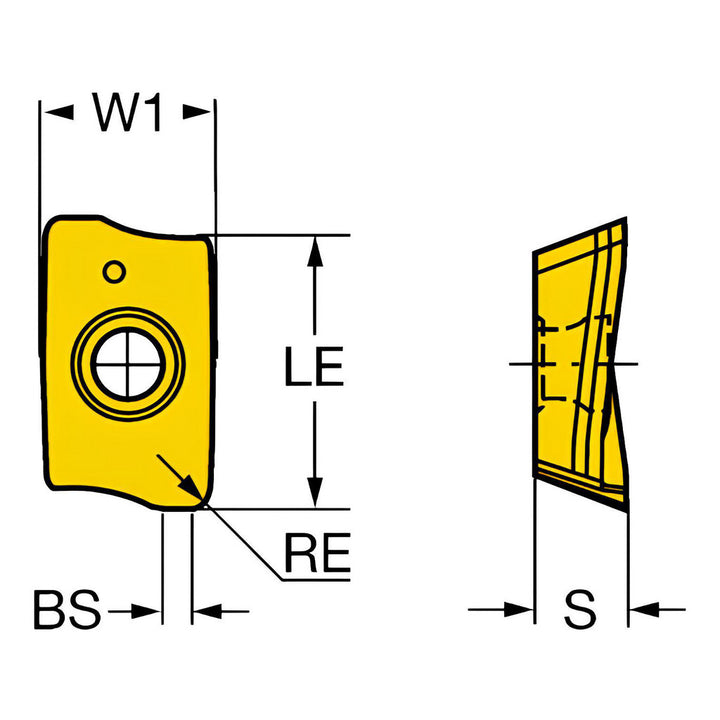

Specifications

Ansi codeR390-17 04 16E-PM 1025
Chip breakerPM
Coating finishTiCN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170416
Insert styleR390
Iso codeR390-17 04 16E-PM 1025
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 16E-PM 1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
