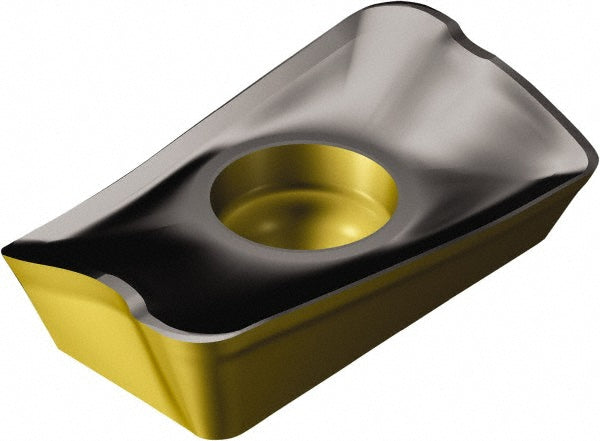

R390-17 04 31M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5745890

Sandvik Coromant

R390-17 04 31M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5745890

MFR# 5745890ISO/ANSI# R390-17 04 31M-PM 4220Cat# R390-17 04 31M-PM 4220Series R390

$26.70List $34.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5745890 is a R390-17 04 31M-PM 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR390-17 04 31M-PM 4220
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.1220
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170431
Insert styleR390
Iso codeR390-17 04 31M-PM 4220
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 31M-PM 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle17
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
