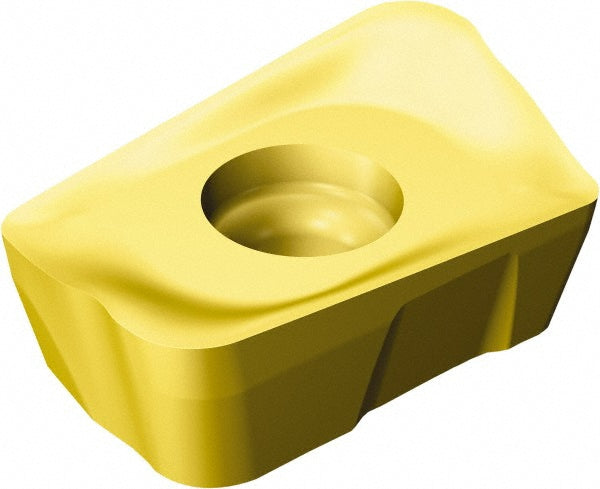

R390-18 06 16H-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5746072

MFR# 5746072ISO/ANSI# R390-18 06 16H-ML 2040Cat# R390-18 06 16H-ML 2040Series R390

$38.56List $49.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5746072 is a R390-18 06 16H-ML 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR390-18 06 16H-ML 2040
Chip breakerML
Coating finishTiCrN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180616
Insert styleR390
Iso codeR390-18 06 16H-ML 2040
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 16H-ML 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
