Sandvik Coromant

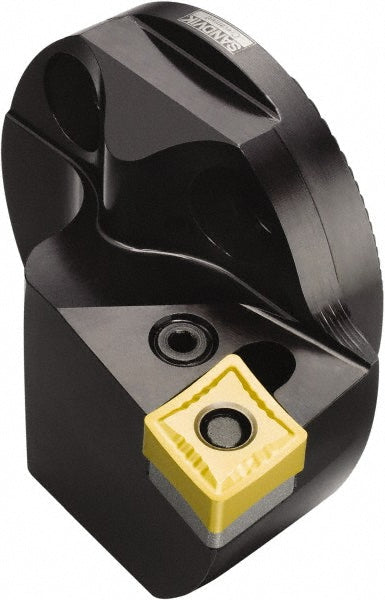

Indexable Turning & Profiling - Sandvik Coromant 5746686
MFR# 5746686Series T-Max P
$483.90List $514.08
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5746686 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge0.8661
Compatible insert styleCNMG 120408
Complete insert compatibilityCNMG 120408
Coolant throughYes
Cutting directionRight Hand
Head connection size40
Head length projection1.2598
Insert holding methodLever
Internal or externalInternal
Maximum hole depth1.2598
Minimum hole diameter1.5748
Neck diameter1.2598
Radial rake angle degrees-11
System size32
