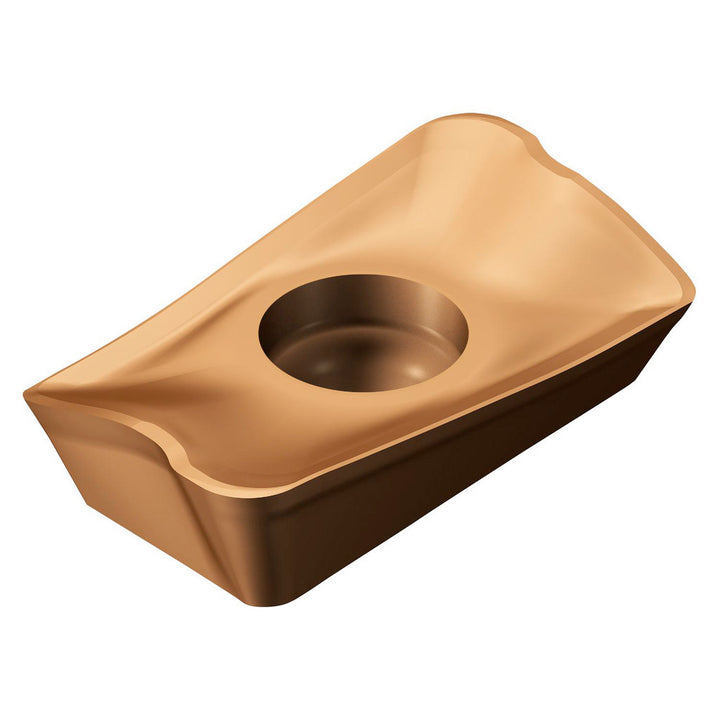

R390-17 04 08M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5746857

Sandvik Coromant

R390-17 04 08M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5746857

MFR# 5746857ISO/ANSI# R390-17 04 08M-KM 1020Cat# R390-17 04 08M-KM 1020Series R390

$28.84List $36.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5746857 is a R390-17 04 08M-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR390-17 04 08M-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08M-KM 1020
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08M-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle17
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
