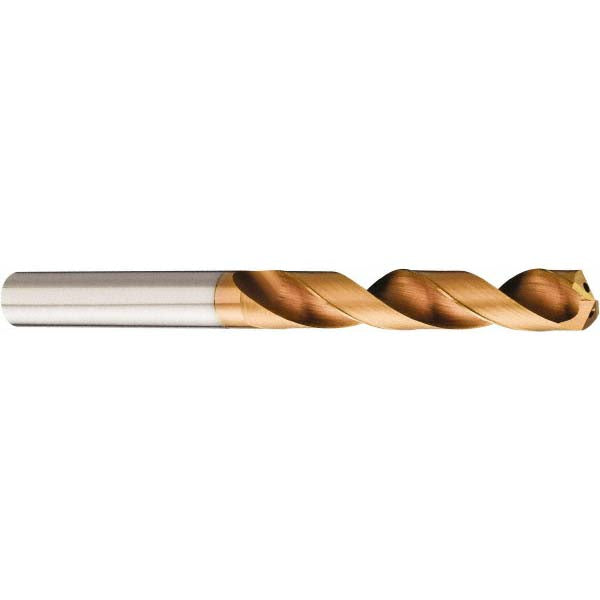

0.2189" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747052

Sandvik Coromant

0.2189" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747052

MFR# 5747052Series CoroDrill® Delta-C R840

$166.73List $213.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Sandvik Coromant 5747052 is a 0.2189" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron. Series CoroDrill® Delta-C R840.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.2189
Drill bit size range0.2000 to 0.2500
Drill point angle140
Drill point length0.0354
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material grade1220
Maximum drilling depth0.6929
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationISO
Specification numberR840-0556-30-A1A 1220
Spiral typeRegular
Tool materialSolid Carbide
