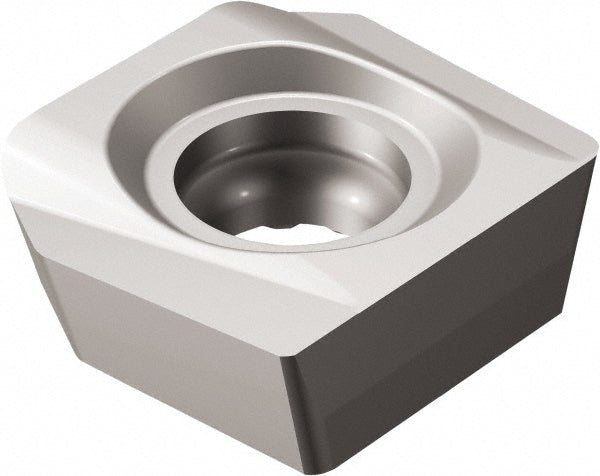

R590-110504H-NW H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5747601

Sandvik Coromant

R590-110504H-NW H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5747601

MFR# 5747601ISO/ANSI# R590-110504H-NW H10Cat# R590-110504H-NW H10Series R590

$32.76List $42.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeParallelogram
GradeH10
MaterialSolid Carbide

Description

The Sandvik Coromant 5747601 is a R590-110504H-NW H10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeR590-110504H-NW H10
Chip breakerNW
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR590
Cutting edge styleWiper
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110504
Insert styleR590
Iso codeR590-110504H-NW H10
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog numberR590-110504H-NW H10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width in29/64
