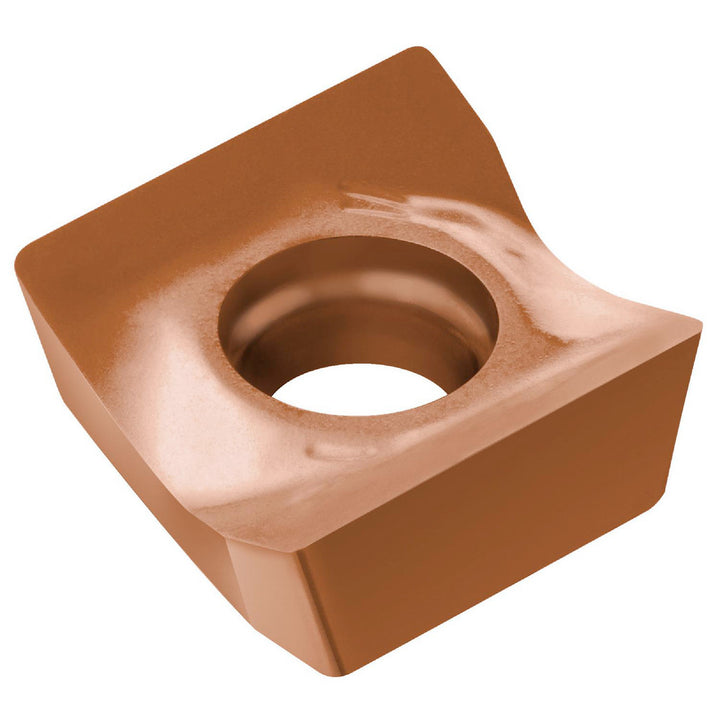

R590-110508H-KL 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5747607

Sandvik Coromant

R590-110508H-KL 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5747607

MFR# 5747607ISO/ANSI# R590-110508H-KL 1020Cat# R590-110508H-KL 1020Series R590

$29.04List $37.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeParallelogram
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5747607 is a R590-110508H-KL 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR590-110508H-KL 1020
Chip breakerKL
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR590
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110508
Insert styleR590
Iso codeR590-110508H-KL 1020
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberR590-110508H-KL 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width in29/64
