Sandvik Coromant

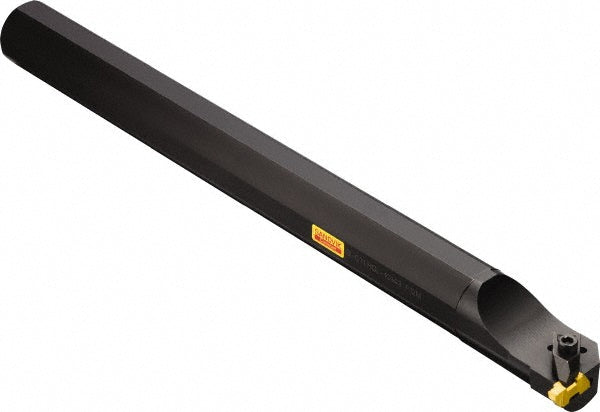

Indexable Boring - Sandvik Coromant 5749396
MFR# 5749396Cat# SI-CTLHOR-05102Series Top Lok
$265.34List $281.88
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5749396 indexable boring. Series Top Lok.
Specifications
Back of bar to cutting edge8.0000
Center to cutting edge in1/2
Coolant throughNo
Hand of holderRight Hand
Insert compatibilityTLG-2125L
Insert holding methodScrew Clamping
Insert thickness0.2190
Lead angle0.00
Manufacturers catalog numberSI-CTLHOR-05102
Minimum bore diameter in1
Minimum bore diameter using diamond insert cartridge1.0000
Minimum bore diameter using triangle insert cartridge1.0000
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in5/8
Number of inserts used on toolholder1
Overall length in8
RakeNeutral
Rake angle0.00
Shank diameter in5/8
Toolholder styleSI
Tool materialSteel
