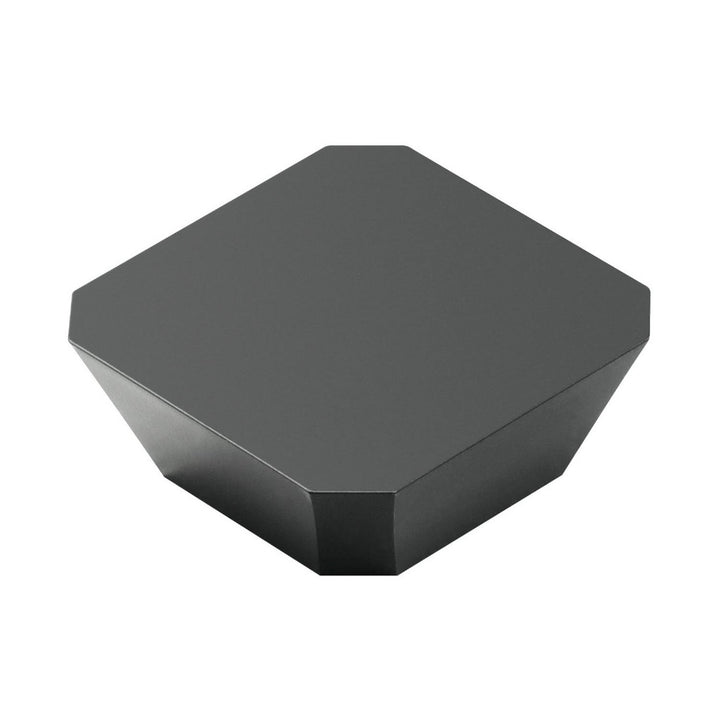

SEKN 12 03 AZ 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5749469

Sandvik Coromant

SEKN 12 03 AZ 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5749469

MFR# 5749469ISO/ANSI# SEKN 12 03 AZ 3040Cat# SEK 42A 3040Series SEK

$23.96List $30.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5749469 is a SEKN 12 03 AZ 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeSEK 42A 3040
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEK
Iso codeSEKN 12 03 AZ 3040
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEK 42A 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle0
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
