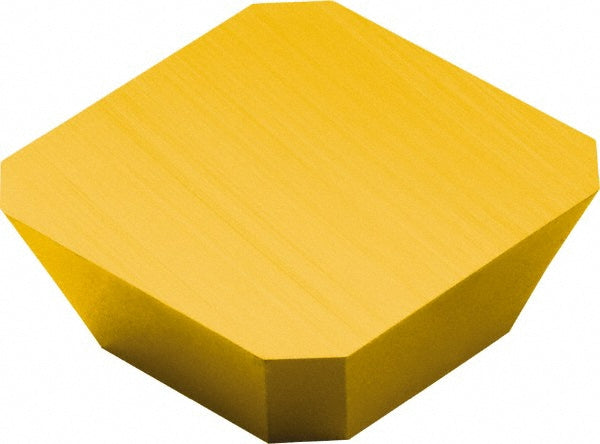

SEMN 12 04 AZ 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5749496

Sandvik Coromant

SEMN 12 04 AZ 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5749496

MFR# 5749496ISO/ANSI# SEMN 12 04 AZ 235Cat# SEM 43A 235Series SEM

$26.52List $34.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5749496 is a SEMN 12 04 AZ 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeSEM 43A 235
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEM
Iso codeSEMN 12 04 AZ 235
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEM 43A 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle0
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
