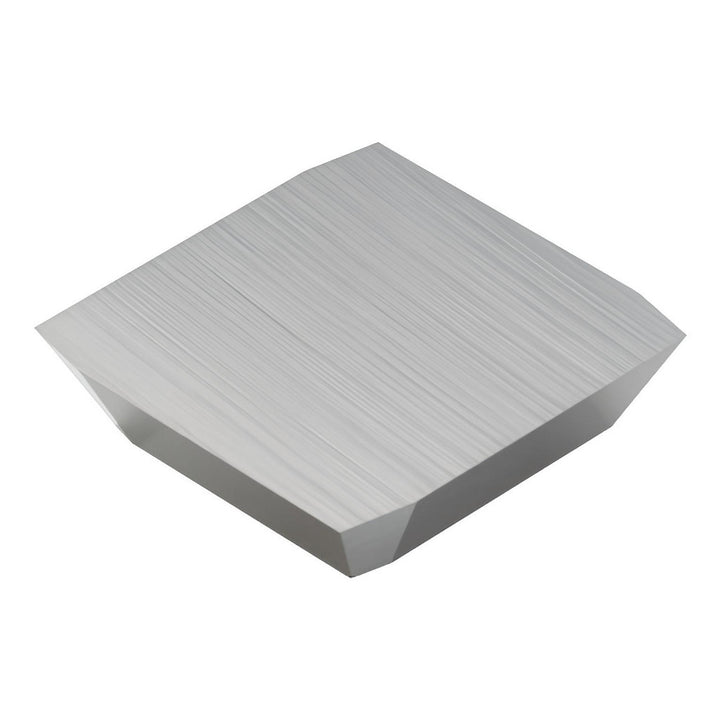

SFAN 12 03 EF R H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5749507

Sandvik Coromant

SFAN 12 03 EF R H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5749507

MFR# 5749507ISO/ANSI# SFAN 12 03 EF R H10Cat# SFA 42E3 R H10Series SFA

$30.10List $38.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeH10
MaterialSolid Carbide

Description

The Sandvik Coromant 5749507 is a SFAN 12 03 EF R H10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeSFA 42E3 R H10
Chip breakerFlat Top
Coating processUncoated
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSFA
Iso codeSFAN 12 03 EF R H10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSFA 42E3 R H10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle0
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
