Sandvik Coromant

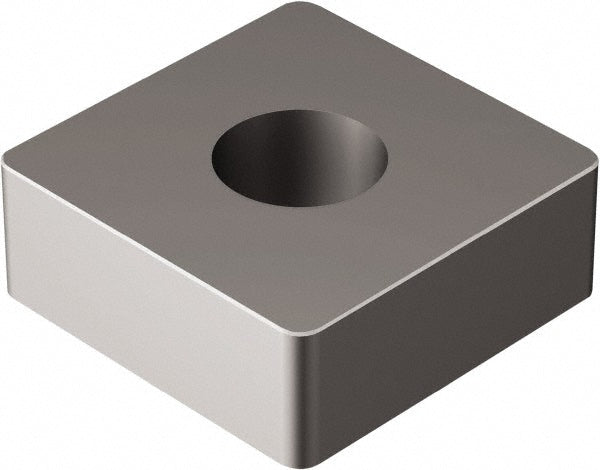

SNGA120412T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5749623
MFR# 5749623ISO/ANSI# SNGA120412T01020 650Series T-Max P
$16.54List $21.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5749623 is a SNGA120412T01020 650 ceramic indexable insert, grade 650, TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in3/64
Cutting edge styleNegative Land
Hole diameter0.2032
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCeramic
Insert shapeSquare
Insert size code433
Insert styleSNGA
Insert thickness in3/16
Iso codeSNGA120412T01020 650
Manufacturers catalog number5749623
Manufacturer grade650
Maximum depth of cut0.4528
Number of cutting edges8
Primary workpiece materialCast Iron
Relief angle0
Secondary workpiece materialSuperalloy; Titanium; Hard Material
Tolerance codeG
Wiper edgeNo
