Sandvik Coromant
SNGN120712E 6060 Carbide Insert, Grade 6060 - Sandvik Coromant 5749740
MFR# 5749740ISO/ANSI# SNGN120712E 6060
$24.39List $31.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade6060
MaterialCarbide
Description

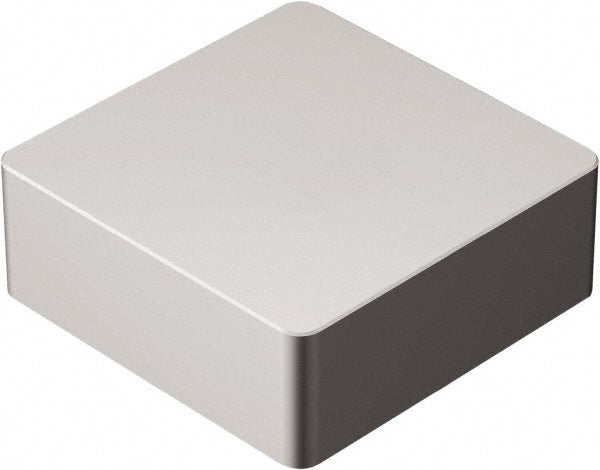

The Sandvik Coromant 5749740 is a SNGN120712E 6060 carbide indexable insert, grade 6060.
Specifications
Chip breakerN
Clearance codeN
Corner radius in3/64
Included angle90
Inscribed circle in1/2
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code453
Insert styleSNGN
Insert thickness in5/16
Iso codeSNGN120712E 6060
Length range0.4000 - 0.5000
Manufacturer grade6060
Relief angle0
Tolerance codeG
