Sandvik Coromant

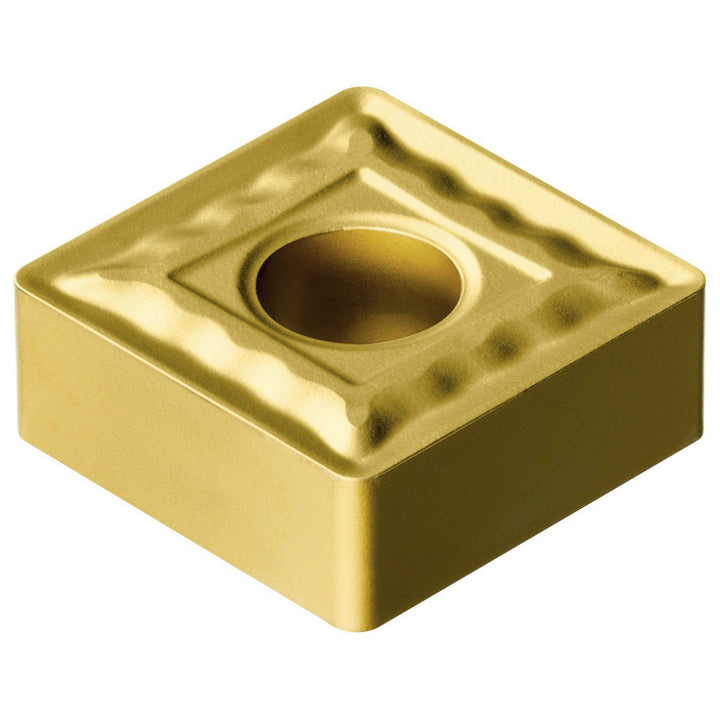

SNMG 09 03 08-QM 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5749761
MFR# 5749761ISO/ANSI# SNMG 09 03 08-QM 235Series T-Max P
$10.76List $13.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5749761 is a SNMG 09 03 08-QM 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG 09 03 08-QM 235
Length range0.3000 - 0.4000
Manufacturer grade235
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
