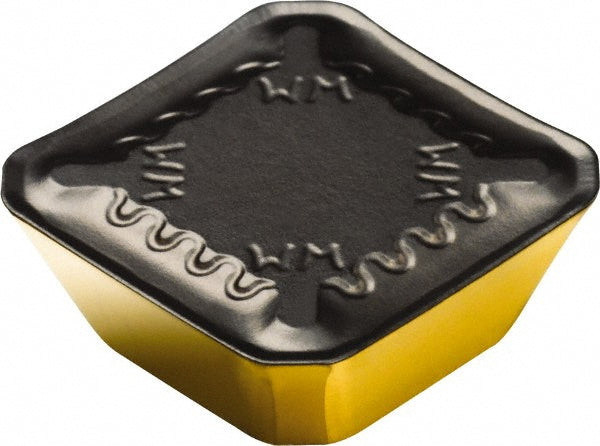

SEKR 12 04 AZ-WM 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5749796

Sandvik Coromant

SEKR 12 04 AZ-WM 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5749796

MFR# 5749796ISO/ANSI# SEKR 12 04 AZ-WM 4230Cat# SEKR 12 04 AZ-WM 4230Series SEKR

$34.86List $44.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade4230
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5749796 is a SEKR 12 04 AZ-WM 4230 solid carbide indexable insert, grade 4230, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSEKR 12 04 AZ-WM 4230
Chip breakerWM
Coating finishTiCN
Coating processCVD
Corner radius0.0591
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEKR
Iso codeSEKR 12 04 AZ-WM 4230
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR 12 04 AZ-WM 4230
Manufacturer grade4230
Material applicationSteel; Cast Iron
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
