Sandvik Coromant

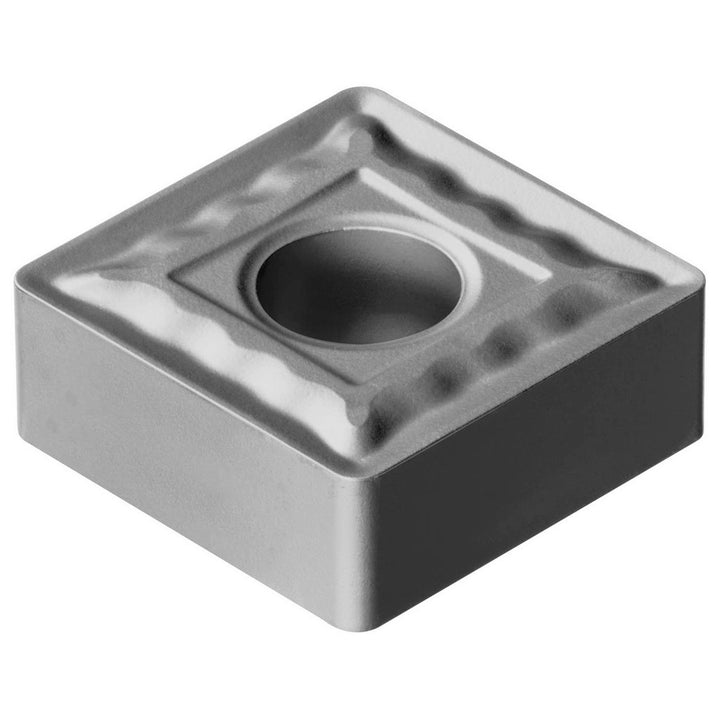

SNMG120412QMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5749871
MFR# 5749871ISO/ANSI# SNMG120412QMH13ASeries T-Max P
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5749871 is a SNMG120412QMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in3/64
Hole diameter0.2032
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412QMH13A
Manufacturers catalog number5749871
Manufacturer gradeH13A
Maximum depth of cut0.4528
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
